ZCQ type self-suction magnetic-driving pumps
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
ZCQ type self-suction magnetic-driving pumps
summary
ZCQ type self-suction magnetic-driving pump (abbreviation: ZCQ magnetic pump) is Shanghai Fengqi Industry Co.,ltd's new product that according to customers' requirements, based on the CQ model magnetic pump absorbing foreign latest technique, and through our technician repeated research and test. ZCQ magnetic pump performance has reached the advanced level to the same products abroad in the 1990s. Replaces the dynamic seal by static seal, makes the pump flow parts in a fully sealed condition, thoroughly solved the disadvantage of running, emitting, droping that can not be avoided by other mechanical seals. Pump body and flow parts materials adopt anti-corrosive stainless steel, corundum ceramic, four fluorine stone and other materials, has CQ magnetic-driving pump functions, and also integrates self-priming at a suit, without seat valve and irrigation, 4 meters self-suction height. Compact structure, small volume, beautiful appearance, low noise, reliable operation, convenient operation and maintenance, and can be widely used in petroleum, chemical, pharmaceutical, electroplating, printing, food, scientific research departments pumping acid, alkali, oil and rare and precious liquids, venoms and volatile liquid, , circulating water equipment matings, especially easy leakage, inflammable and explosive liquids pumping.
type meaning
example: ZCQ32-25-145
ZCQ-self-suction magnetic-driving pump
32-pump inlet diameter (mm)
25-pump outlet diameter (mm)
145-impeller diameter (mm)

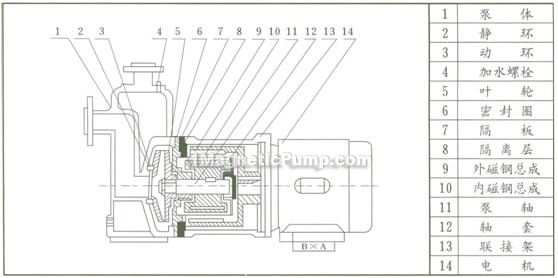

structural diagram
ZCQ type self-suction magnetic-driving pumps structural diagram
performance parameters
| type | diameter | head m | flow L/min | motor power KW | rotate speed r/min | voltage V | self-suction performance m3/min | |
| inlet | outlet | |||||||
| ZCQ25-20-115 | 25 | 20 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ32-25-115 | 32 | 25 | 15 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ32-25-145 | 32 | 25 | 25 | 110 | 1.1 | 2900 | 380 | 4 |
| ZCQ40-32-132 | 40 | 32 | 20 | 180 | 2.2 | 2900 | 380 | 4 |
| ZCQ40-32-160 | 40 | 32 | 32 | 180 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-160 | 50 | 40 | 25 | 240 | 4 | 2900 | 380 | 4 |
| ZCQ50-40-145 | 50 | 40 | 32 | 220 | 4 | 2900 | 380 | 4 |
| ZCQ65-50-145 | 65 | 50 | 25 | 280 | 5.5 | 2900 | 380 | 4 |
| ZCQ65-50-160 | 65 | 50 | 32 | 450 | 7.5 | 2900 | 380 | 4 |
| ZCQ80-65-125 | 80 | 65 | 20 | 800 | 7.5 | 2900 | 380 | 4 |
| ZCQ80-65-160 | 80 | 65 | 32 | 800 | 15 | 2900 | 380 | 4 |
| ZCQ100-80-160 | 100 | 80 | 32 | 150 | 22 | 2900 | 380 | 4 |
