MT-MSP multi-stage magnetic pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

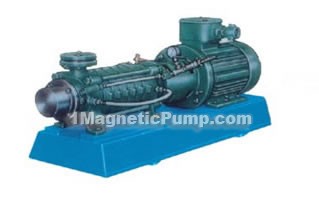

product drawing
MT-MSP multi-stage magnetic pumps
summary
The pump flow and single stage impeller head are the same with CQB type magnetic pump, increased impellers to meet the high head requirement, it is widely used in chemical process, oil injection, metallurgy, mining departments no leakage conveying normal or high temperature (350 degrees Celsius) medium
main technical parameters
flow：6.25~25 c/h
head：50~600m
power：3~90KW
material： S.S carbon steel
applicable temperature：≤80℃

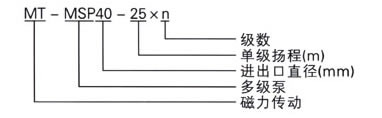

type meaning
MT-MSP multi-stage magnetic pump type meaning
performance parameters
| type | stage number | flow | head (mm) |
rotate speed (r/min) |
liquid density | power (KW) |
(NPSH)r(m) | impeller diameter (mm) |
|
| (m3/h) | (L/S) | ||||||||
| MT-MSP40-25 | 2 | 6.25 | 1.74 | 50 | 2900 | 0.75 | 3 | 4.0 | 147 |
| 3 | 75 | 4 | |||||||
| 4 | 100 | 5.5 | |||||||
| 5 | 125 | 7.5 | |||||||
| 6 | 150 | 7.5 | |||||||
| 7 | 175 | 11 | |||||||
| 8 | 200 | 11 | |||||||
| 9 | 225 | 15 | |||||||
| 10 | 250 | 15 | |||||||
| 11 | 275 | 15 | |||||||
| 12 | 300 | 15 | |||||||
| 13 | 325 | 18.5 | |||||||
| 14 | 350 | 18.5 | |||||||
| MT-MSP50-50 | 2 | 12.5 | 3.74 | 100 | 2900 | 0.75 | 11 | 4.0 | 200 |
| 3 | 150 | 15 | |||||||
| 4 | 200 | 18.5 | |||||||
| 5 | 250 | 22 | |||||||
| 6 | 300 | 30 | |||||||
| 7 | 350 | 30 | |||||||
| 8 | 400 | 37 | |||||||
| 9 | 450 | 45 | |||||||
| 10 | 500 | 45 | |||||||
| 11 | 550 | 55 | |||||||
| 12 | 600 | 55 | |||||||
| MT-MSP65-30 | 3 | 25 | 6.94 | 90 | 2900 | 0.75 | 11 | 4.0 | 160 |
| 4 | 120 | 15 | |||||||
| 5 | 150 | 18.5 | |||||||
| 6 | 180 | 22 | |||||||
| 7 | 210 | 30 | |||||||
| 8 | 240 | 30 | |||||||
| 9 | 270 | 37 | |||||||
| 10 | 300 | 37 | |||||||
| MT-MSP65-50 | 3 | 25 | 6.94 | 150 | 2900 | 0.75 | 22 | 3.5 | 200 |
| 4 | 200 | 30 | |||||||
| 5 | 250 | 37 | |||||||
| 6 | 300 | 45 | |||||||
| 7 | 350 | 55 | |||||||
| 8 | 400 | 55 | |||||||
| 9 | 450 | 75 | |||||||
| 10 | 500 | 75 | |||||||
| 11 | 550 | 75 | |||||||
| 12 | 600 | 90 | |||||||
