MT-HTP type high temperature magnetic pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

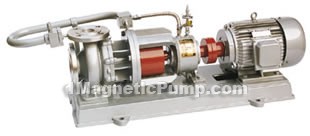

product drawing
MT-HTP type high temperature magnetic pumps
summary
MT-HTP type high temperature magnetic-driving centrifugal pump (hereinafter referred to as high temperature magnetic pump). Main characteristic is utilizing magnetic transmission external magnets rotating, magnetic line across through clearance and isolation sleeve, role on the internal magnets, makes pump shaft and motor rotating synchronously, non-contact transfer torque. In the pump shaft power input end, due to the liquid is closed in static distance sleeve, without dynemic sealing, thus completely eliminate petrochemical industry run, emit, drip, leakage phenomenon, and no leakage. This type high temperature magnetic pump adopts external circulation cooling, ensure and extend the service life of mechanical seal. It is applicable to transmission poisonous and harmful, inflammable, explosive and precious high temperature liquid medium, is the ideal pump to create no leakage, non-polluting civilization workshop and factory. MT-HTP high temperature magnetic pump has very ideal performance in petroleum, chemical, pharmaceutical, electroplating, environmental protection, food, film developing, water treatment, defence industries for transport inflammable, explosive, toxic, volatile, and all kinds of high temperature corrosive liquid.
main performance parameters
flow：3.2-100m3/h
head：15-80m
motor power：1.1-55kW
applicable temperature：≤350℃
material:1Cr18Ni9Ti (can customize 304.316.316L material)
performance parameters
| type | diameter (mm) | flow (m3/h) | head (m) | motor power (kW) | voltage (V) | material | |
| inlet | outlet | ||||||
| MT-HTP32-25-115 | 32 | 25 | 6.6 | 15 | 1.1 | 380 | stainless steel |
| MT-HTP32-20-125 | 32 | 20 | 3.2 | 20 | 1.1 | 380 | |
| MT-HTP 32-20-160 | 32 | 20 | 3.2 | 32 | 1.5 | 380 | |
| MT-HTP 40-25-125 | 40 | 25 | 6.3 | 20 | 2.2 | 380 | |
| MT-HTP 40-25-160 | 40 | 25 | 6.3 | 32 | 3 | 380 | |
| MT-HTP 40-25-200 | 40 | 25 | 6.3 | 50 | 5.5 | 380 | |
| MT-HTP 50-32-125 | 50 | 32 | 12.5 | 20 | 3 | 380 | |
| MT-HTP 50-32-160 | 50 | 32 | 12.5 | 32 | 4 | 380 | |
| MT-HTP 50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | 380 | |
| MT-HTP 50-32-250 | 50 | 32 | 12.5 | 80 | 18.5 | 380 | |
| MT-HTP 65-50-125 | 65 | 50 | 25 | 20 | 4 | 380 | |
| MT-HTP 65-50-160 | 65 | 50 | 25 | 32 | 7.5 | 380 | |
| MT-HTP 65-40-200 | 65 | 40 | 25 | 50 | 15 | 380 | |
| MT-HTP 65-40-250 | 65 | 40 | 25 | 80 | 18.5 | 380 | |
| MT-HTP 80-65-125 | 80 | 65 | 50 | 20 | 7.5 | 380 | |
| MT-HTP 80-65-160 | 80 | 65 | 50 | 32 | 15 | 380 | |
| MT-HTP 80-50-200 | 80 | 50 | 50 | 50 | 18.5 | 380 | |
| MT-HTP 80-50-250 | 80 | 50 | 50 | 80 | 37 | 380 | |
| MT-HTP 100-80-125 | 100 | 80 | 100 | 20 | 15 | 380 | |
| MT-HTP 100-80-160 | 100 | 80 | 100 | 32 | 18.5 | 380 | |
| MT-HTP 100-65-200 | 100 | 65 | 100 | 50 | 37 | 380 | |
| MT-HTP 100-65-250 | 100 | 65 | 100 | 80 | 55 | 380 | |
| Note: each model can match explosion-proof motor | |||||||
