MP magnetic circulating pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
MP magnetic circulating pumps
MP magnetic circulating pump(pic2)
MP magnetic circulating pump(pic3)
summary
MP type magnetic-driving circulating pump (also known as MP minitype magnetic pump) operation is respectively assembling magnetic material in coupling and impeller to attract each other and couple, without matching traditional mechanical seal, so it is completely sealed. Motor rotating torque is mainly through active magnetic and passive magnetic attraction driven impeller operation. Now the habitual magnetic-driving pumps great shortcoming is absolutely prohibited operation under the cirsumstance of lack of fluid or machine will damage, adding some needless trouble to users. Shanghai Fengqi industrial Co.,ltd produced magnetic-driving circulating pump is not worried about this. Magnetic-driving circulating pump adopts a special designed ceramic as bearing, with strong ceramic abrasion and corrosion resistance, guarantee the magnetic-driving pump advanced performance and safe quality. Magnetic-driving circulating pump uses no shaft seal design, completely avoid traditional mechanical seal existed leakage of liquid that caused pollution defects after corrosion, is the most ideal liquid transport in small industrial equipment.

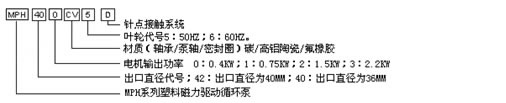

type meaning
MP magnetic circulating pump type meaning 1
MP magnetic circulating pump type meaning 2
performance curve
MP magnetic circulating pump performance curve 1
MP magnetic circulating pump performance curve 2
MP magnetic circulating pump performance curve 3
MP magnetic circulating pump performance curve 4
MP magnetic circulating pump performance curve 3
MP magnetic circulating pump performance curve 3
MP magnetic circulating pump performance curve 7
Note: under normal temperature water conditions, when the maximum flow, head is 0, when the highest head, flow is 0. Single-phase motor working voltage is 100V, 110V, 220V, 240V, three-phase motor working voltage is 380V. The normal medium temperature is 0 ~ 80 ° c. If there is demand for higher working environment, it can be settled through friendly negotiation.
applicable scope examples
| chemistry industry | Sodium carbonate chemisty industry (hydrochloric acid, hydrofluoric acid, secondary chemicals production), fluoride and chemical fertilizers production, Gas absorber reaction liquid circulation, Grease extraction (sulfuric acid); Reclamation and regeneration system of waste acid, strong acid transimission between chemical plants and vehicles. |
| pharmacy | semiconductor light chemicals (EL), pesticides, medicine, water treatment chemicals production |
| electroplating industry | Circulation-filtering various plating solution |
| photograph industry | Namely photomechanical system, X-ray, black and white, color, stereo photo developing service |
| Electrical appliance industry | The production of electrolytic capacitors (aluminum film etching); the dry cell and storage battery manufacturing process conveying electrolyte, PCB etching, Semiconductor manufacturing process conveying high purity chemical liquid |
| Metal industry | Alumina membrane processing equipment, Wire drawing, steel rolling and pickling, In the production of oil and pickling process, Titanium oxide and rare earth elements production, etc |
| mining industry | Metal smelting (transportation and circulation electrolyte), Washing of waste liquid |
| food industry | The production of gluconic acid (hydrochloric acid), Extraction of edible oil (sulfuric acid); Canned fruit industry (hydrochloric acid) |
| medical treatment | Artificial kidney, lung, ultrasonic cleaning machines and various medical equipment |
| water treatment | Cleaning ion exchange resin, Pure water production equipment, Seawater desalination equipment |
| pollution control | Add sewage treatment chemicals to liquor cylinder, Collect and transfer liquid, Gas absorption equipment (deodorization device, desulfurization before discharge waste gas) |
| others | Application in silver recycling, wafer manufacturing, experiment, refrigerator, beverage machine factory, boiler, heat exchangers, solar system, bleaching, dyeing and laser systems and ornamental fish pond, fountain, recycling |
Note: magnetic drive circulating pump manufactured by polypropylene materials, with anti-chemical corrosion liquids performance, application is very extensive
performance parameters
| type | hose interface | thread connection | maximum flow (L/min） | highest height (m） | standard output | proportion | motor | |||||
| inlet (mm） | outlet (mm) | (inch) | (mm) | 50Hz/60Hz | 50Hz/60Hz | flow (L/min）50Hz/60Hz | head (m) 50Hz/60Hz | output (w) 50Hz/60Hz | phase | |||
| MP-6R | 14 | 14 | - | - | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 3 | 1 | |
| MP-6RZ | 14 | 14 | - | - | 5.5/6 | 2.1/2.7 | 3.2/4.5 | 0.8 | <1.1 | 3 | 1 | |
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 | |
| MP-10RN | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 | |
| MP-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 | |
| MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 | |
| MP-15RM | - | - | 3/4 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 | |
| MP-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 | |
| MP-20RM | - | - | 3/4 | 16 | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 | |
| MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 | |
| MP-20RXM | - | - | 1 | 20 | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 | |
| MP-2RZ | 18 | 18 | - | - | 10/11 | 4.6/6.9 | 7/10 | 4 | <1.1 | 20 | 1 | |
| MP-20RZM | - | - | 3/4 | 13 | 10/11 | 4.6/6.9 | 7/10 | 4 | <1.1 | 20 | 1 | |
| MP-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 | |
| MP-30RM | - | - | 3/4 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 | |
| MP-30RX | 26 | 26 | - | - | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 | |
| MP-30RXM | - | - | 1 | 20 | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 | |
| MP-30RZ | 18 | 18 | - | - | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 | |
| MP-30RZM | - | - | 3/4 | 13 | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 | |
| MP-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 | |
| MP-40RM | - | - | 3/4 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 | |
| MP-40RX | 26 | 26 | - | - | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 | |
| MP-40RXM | - | - | 1 | 20 | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 | |
| MP-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1or3 | |
| MP-55RM | - | - | 1 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1or3 | |
| MP-55RZ | 26 | 26 | - | - | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1or3 | |
| MP-55RZM | - | - | 1 | 20 | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1or3 | |
| MP-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1or3 | |
| MP-70RM | - | - | 1 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1or3 | |
| MP-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1or3 | |
| MP-100RM | - | - | 1 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1or3 | |
| MP-100RX | - | - | 11/4 | 32 | 170 | 9.0 | 100 | 5.0 | <1.3 | 250 | 1or3 | |
| MP-120R | - | - | 11/2 | 36 | 220 | 10.5 | 140 | 6.0 | <1.3 | 370 | 1or3 | |
| MP-120RT | - | - | 21/4 | 48 | 220 | 10.5 | 140 | 6.0 | <1.3 | 370 | 1or3 | |
| MPH-400CV5-D | - | - | 11/2 | 36 | 260 | 12.5 | 150 | 8.5 | <1.3 | 370 | 3 | |
| MPH-401CV5-D | - | - | 11/2 | 36 | 330 | 18 | 200 | 12 | <1.3 | 750 | 3 | |
| MPH-422CV5-D | - | - | 2 | 11/2 | 300 | 21 | 200 | 18.5 | <1.3 | 1500 | 1or3 | |
| MPH-423CV5-D | - | - | 2 | 11/2 | 360 | 22 | 300 | 20.5 | <1.3 | 2200 | 1or3 | |
