CQG type vertical magnetic pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
CQG type vertical magnetic pumps
summary
CQG type vertical magnetic pump is our new pipeline pump that bases on 10 years experience in designing and manufacturing horizontal magnetic pumps, it has both the ISG type pipeline centrifugal pump characteristic, and the advantages of magnetic chemical pump, is the latest generation of no leakage pipe centrifugal pump.
features:
1, revolve without leakage, can transport inflammable, explosive and poisonous, corrosive medium,
2, excellent material, pump body, impeller, distance sleeve and other flow components adopt high quality stainless steel,
3 sleeve adopts high wear-resisting silicon carbide, tungsten carbide, sliding bearing uses carbon stone M106K, and set the lubricating oil tank, effectively ensure the pump life,4 vertical installation, compact structure, small floor area,
5, little vibration, low noise, special smooth operation,
6, most parts of the pump can exchange with CQB series magnetic pump, with the same performance of CQB series, Flow is 3.2-100m 3 / h, Head is 20-80m, Power is 0.75-75Kw.
type

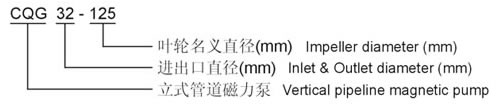

type meaning
main performance parameters
| type | diameter (mm) | flow (m3/h) | head (m) |
motor power (kW) | voltage (V) |
material | |
| inlet | outlet | ||||||
| CQG32-125L | 32 | 20 | 3.2 | 20 | 1.1 | 380 | Stainless steel |
| CQG32-160L | 32 | 20 | 3.2 | 32 | 1.5 | 380 | |
| CQG40-105L | 40 | 25 | 3.2 | 12.5 | 1.1 | 380 | |
| CQG40-125L | 40 | 25 | 6.3 | 20 | 2.2 | 380 | |
| CQG40-160L | 40 | 25 | 6.3 | 32 | 3 | 380 | |
| CQG40-200L | 40 | 25 | 6.3 | 50 | 5.5 | 380 | |
| CQG50-85L | 50 | 32 | 6.3 | 8 | 1.1 | 380 | |
| CQG50-105L | 50 | 32 | 6.3 | 12.5 | 1.5 | 380 | |
| CQG50-125L | 50 | 32 | 12.5 | 20 | 3 | 380 | |
| CQG50-160L | 50 | 32 | 12.5 | 32 | 4 | 380 | |
| CQG50-200L | 50 | 32 | 12.5 | 50 | 7.5 | 380 | |
| CQG50-250L | 50 | 32 | 12.5 | 80 | 18.5 | 380 | |
| CQG65-125L | 65 | 50 | 25 | 20 | 4 | 380 | |
| CQG65-160L | 65 | 50 | 25 | 32 | 7.5 | 380 | |
| CQG65-200L | 65 | 40 | 25 | 50 | 15 | 380 | |
| CQG65-250L | 65 | 40 | 25 | 80 | 22 | 380 | |
| CQG80-125L | 80 | 65 | 50 | 20 | 7.5 | 380 | |
| CQG80-160L | 80 | 65 | 50 | 32 | 15 | 380 | |
| CQG80-200L | 80 | 50 | 50 | 50 | 22 | 380 | |
| CQG80-250L | 80 | 50 | 50 | 80 | 37 | 380 | |
| CQG100-125L | 100 | 80 | 100 | 20 | 15 | 380 | |
| CQG100-160L | 100 | 80 | 100 | 32 | 22 | 380 | |
| CQG100-200L | 100 | 65 | 100 | 50 | 37 | 380 | |
| CQG100-250L | 100 | 65 | 100 | 80 | 55 | 380 | |
| Note: explosion-proof motors can be matched for each model | |||||||
