CQCB type stainless steel insulation magnetic pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
CQCB type stainless steel insulation magnetic pumps
summary
CQGB type stainless steel heat insulation magnetic pump (hereinafter referred to as magnetic pump), heat insulation type magnetic-driving pumps( heat insulation 20℃~150℃) is a new kind of pump that relies on permanent magnets interaction transmission, static sealing instead of dynamic sealing. It has compact structure, small volume, beautiful appearance, low noise, reliable operation, convenient usage and maintenance.
applicable range
CQGB type stainless steel heat preservation magnetic pump has compact structure, good appearance, small size, low noise, reliable operation, convenient usage. It is widely used in petroleum, chemical, pharmaceutical, electroplating, printing, food, scientific research units pumping acid, alkali, oil and rare and precious fluid, venoms and volatile liquid, circulating water equipment matings pumping, especially for leakage, explosive, easy to alkene liquid, select this pump is more ideal.
structure declaration
pump body：1Cr18Ni9Ti distance sleeve：1Cr18Ni9Ti
impeller：1Cr18Ni9Ti magnetic：Ferrite, NdFeB
static ring：corundum ceramic sleeve: packing F4
dynamic ring：packing F4 connecting support：HT200
shaft ：1Cr18Ni9Ti clapboard：1Cr18Ni9Ti

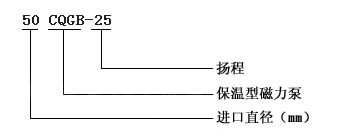

type meaning
CQCB type stainless steel insulation magnetic pump type meaning
performance parameters
| type | diameter | head | flow | motor power (KW) | rotate speed (r/min) |
voltage (v) |
suction (m) |
||
| inlet (mm) |
outlet (mm) | (m) | (L/min) | (m3/h) | |||||
| 25CQGB-15 | 25 | 20 | 15 | 110 | 6.6 | 1.1 | 2900 | 380 | 4 |
| 32CQGB-15 | 32 | 25 | 15 | 110 | 6.6 | 1.1 | 4 | ||
| 32CQGB-25 | 32 | 25 | 25 | 110 | 6.6 | 1.1 | 4 | ||
| 40CQGB-20 | 40 | 32 | 20 | 180 | 10.8 | 2.2 | 6 | ||
| 50CQGB-25 | 50 | 40 | 25 | 240 | 14.4 | 4 | 6 | ||
| 50CQGB-40 | 50 | 40 | 40 | 220 | 13.2 | 4 | 6 | ||
| 50CQGB-50 | 50 | 40 | 50 | 130 | 7.8 | 5.5 | 6 | ||
| 65CQGB-25 | 65 | 50 | 25 | 280 | 16.8 | 5.5 | 6 | ||
| 65CQGB-35 | 65 | 50 | 35 | 450 | 27 | 7.5 | 6 | ||
| 80CQGB-35 | 80 | 65 | 35 | 850 | 51 | 11 | 6 | ||
| 8CQGB-50 | 80 | 65 | 50 | 850 | 51 | 15 | 6 | ||
